Electrostatic liquid / oil cleaning machine removes all types and all sizes of suspended / solid / particles / contamination from the oil including resins and oxidation products. ELC removes submicronic particles up to 0.1 micron

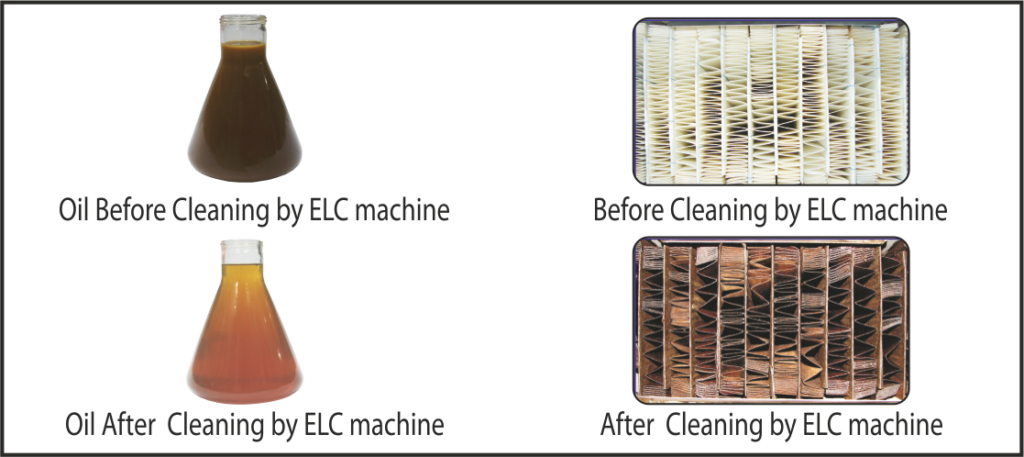

High voltage transformer (HVT) is a heart of the ELC machine and output of HVT is 10 – 12 KVDC (Kilo Volt Direct Current). In cleaning chamber, Dust collector papers are kept in between positive (+) and negative (-) electrodes. Oil ow comes from bottom to top. Because of KVDC, contamination gets charge (Here oil does not charged and / or oil properties does not affect) either positive (+) or negative (-) pole and attract to opposite pole. During traveling, contaminations are trapped by dust collector papers. Thus, oil gets clean.
Varnish : Varnish is a thousand of very thin layers on surface of spool, valve, gears, vanes/parts of pumps. These gradually reduce the clearance and increase the friction, leading to wear and tear. This varnish is removed by ELC machine only.
|
Model
|
Electric Power
|
Dimension L x W X H mm
|
Pump Flow
|
Weight (Approx)
|
|---|---|---|---|---|
|
ELC - 50 L
|
400 w
|
850 x 400 x 875
|
10-12 LPM
|
125kg
|
|
ELC - 100 L
|
425 w
|
925 x 525 x 925
|
10-12 LPM
|
175kg
|
Selection of ELC is depend on quality of oil (Before cleaning) and surrounding environment condition.
Electrostatic liquid / oil cleaning machine removes all types and all sizes of suspended / solid / particles / contamination from the oil including resins and oxidation products.
An Absolute Mechanical filter (AMF) machine is a filtering solid particles greater than a stated micron size. We may choose either “Nominal” or “Absolute” filtering systems.
LVDH / VDDU is a mobile compact unit to remove free, emulsified and dissolved water / moisture from the mineral/synthetic oils at low temperature under vacuum condition.
Owing to the sturdy construction, ease of operation, longer operational life, portability, minimal maintenance, ease of installation, high production rate and low cost, the offered batch of machines, oil machines & testing kits is massively demanded in the industry.
